Jquery DataTables And Java Integration

  • Jquery DataTables is a open source plugin for creating tables in browser.
  • It has many features like sorting,server side processing, JQUERY UI theme rolling.
  • The download link for this plugin:-
           http://www.datatables.net/download/
  • In this demo we have shown integration of data table with java.The Data table will load the data by making an Ajax  call to load all the data.
  • The response data must contain "aaData" properties.
  • The main components in this demo are :-

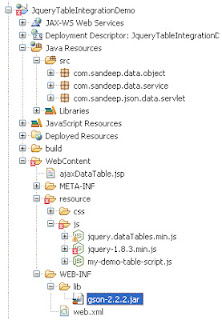

Project Structure:-

Integration With Java :-

  • The Static data StudentDataService.java ,
package com.sandeep.data.service;

import java.util.ArrayList;
import java.util.List;
import com.sandeep.data.object.Student;

public class StudentDataService {

 public static List<student> getStudentList() {

  List<student> listOfStudent = new ArrayList<student>();

  Student aStudent = new Student();

  for (int i = 1; i <= 200; i++) {

   aStudent = new Student();

   aStudent.setName("Sandeep" + i);

   aStudent.setMark("20" + i);

   listOfStudent.add(aStudent);
  }

  return listOfStudent;

 }
}
  • Data table object which will go as response in Servlet DataTableObject.java,
package com.sandeep.data.object;

import java.util.List;

public class DataTableObject {

 int  iTotalRecords;

 int  iTotalDisplayRecords;

 String  sEcho;

 String sColumns;

 List<student> aaData;

 public int getiTotalRecords() {
  return iTotalRecords;
 }

 public void setiTotalRecords(int iTotalRecords) {
  this.iTotalRecords = iTotalRecords;
 }

 public int getiTotalDisplayRecords() {
  return iTotalDisplayRecords;
 }

 public void setiTotalDisplayRecords(int iTotalDisplayRecords) {
  this.iTotalDisplayRecords = iTotalDisplayRecords;
 }

 public String getsEcho() {
  return sEcho;
 }

 public void setsEcho(String sEcho) {
  this.sEcho = sEcho;
 }

 public String getsColumns() {
  return sColumns;
 }

 public void setsColumns(String sColumns) {
  this.sColumns = sColumns;
 }

 public List<student> getAaData() {
  return aaData;
 }

 public void setAaData(List<student> aaData) {
  this.aaData = aaData;
 }



}
  • The Servlet which return JSON as String StudentDataServlet.java,
package com.sandeep.json.data.servlet;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.google.gson.Gson;
import com.google.gson.GsonBuilder;
import com.sandeep.data.object.DataTableObject;
import com.sandeep.data.object.Student;
import com.sandeep.data.service.StudentDataService;

public class StudentDataServlet extends HttpServlet {

 private static final long serialVersionUID = 1L;

 public StudentDataServlet() {
  super();
 }

 protected void doGet(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {

  response.setContentType("application/json");
  PrintWriter out = response.getWriter();
  List<Student> lisOfStudent = StudentDataService.getStudentList();

  DataTableObject dataTableObject = new DataTableObject();
  dataTableObject.setAaData(lisOfStudent);

  Gson gson = new GsonBuilder().setPrettyPrinting().create();
  String json = gson.toJson(dataTableObject);
  out.print(json);

 }

 protected void doPost(HttpServletRequest request,
   HttpServletResponse response) throws ServletException, IOException {

  doGet(request, response);
 }

}


  • The html file with table element file ajaxDataTable.jsp,
<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Ajax Data Response And JQuery data table</title>

<style type="text/css" title="currentStyle">
   @import "./resource/css/demo_table_jui.css";
   @import "./resource/css/jquery-ui-1.9.2.custom.min.css";
</style>
<style>
.table-container{
 width:800px;
}
tr.odd{
background: #EDE4D4 !important;
}
tr.odd td.sorting_1{
background: #EDE4D4 !important;
}
tr.even td.sorting_1{
background: #fff !important;
}
</style>

</head>
 <body>
 <div class="table-container">
    <table  cellpadding="0" cellspacing="0" border="0"  class="display jqueryDataTable">
   <thead>
    <tr>
       <th>Name</th>
     <th>Mark</th>
    </tr>
   </thead>
   <tbody>
   </tbody>
   </table>
   </div>
   <script src="./resource/js/jquery-1.8.3.min.js"></script>
   <script src="./resource/js/jquery.dataTables.min.js"></script>
   <script src="http://code.jquery.com/ui/1.9.2/jquery-ui.js"></script>
   <script src="./resource/js/my-demo-table-script.js"></script>
 </body>
</html>
  • Java Script code for initializing the data table my-demo-table-script.js,
$(document).ready(function() {

    $(".jqueryDataTable").dataTable( {
        "bProcessing": false,
        "bServerSide": false,
        "sAjaxSource": "./StudentDataServlet",
        "bJQueryUI": true,
        "aoColumns": [
            { "mData": "name" },
            { "mData": "mark" }

        ]
    } );
} );


Output:-

The output of integrated table will  be,


Video:-

Download Demo Code:-
